USB Repeater over Fiber Optic Cable
The USB Ranger
422 and 422i (int'l) is a commercial grade product designed for commercial
end-user applications. It provides all the
flexibility of USB in a easy-to-use package. The USB Ranger 422 is optimized for applications where
up to four devices, such as a keyboard, mouse, camera, printer, scanner,
etc., must be operated over very long distances simultaneously.

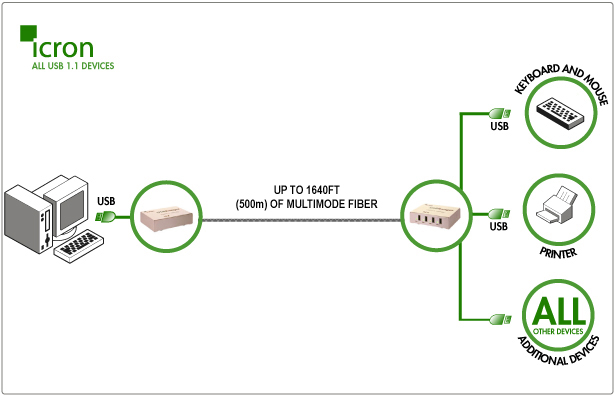

products are composed of two separate units: the Local EXtender (LEX) and
the Remote EXtender (REX). Conventional USB cables are used to connect the LEX
unit to the host computer and to connect the remote USB device to the REX
unit. Standard Fiber Optic cabling (multimode duplex) is used to connect the LEX and REX units
over a distance of up to 500 meters (1600+ feet).
The USB Ranger 422 is powered from power adapters included in the package
and delivers the same power as a normal USB port on a PC.
We had a customer who
wanted to connect their new KIP scanner (www.kipamerica.com), but the
device only connected through USB. They used one of our USB
Extenders to connect it so they could scan their architectural plans, via
USB, to a PC on the other side of their office, which was over 200ft away.
It has worked flawlessly since it was installed.
For customer who only want to run their device up to 1,000ft, can
use Multimode Duplex Fiber (62.5/125).
But, to run it up to 1650ft, it will require you to use Multimode Duplex
- Local Unit (LEX)
- Remote Unit
- USB Cable
- User Guide
NOTE: Fiber Optic Cable is
not included in this package, please purchase separately
This item was
A replacement item is available
by special order. Please call or email
to find out more.
Click on the picture to
COMMERCIAL GRADE EQUIPMENT
ExtremeUSB™ technology extends the range of USB up to 1600+ft (500m)
over Fiber Optic Cable
Works with both PCs and Macs
Works with any full
Weight: 0.6lb (0.3kg)/each unit
Compact size: 114x106x38 mm
Works over MTRJ Fiber Optic Cable
Data Rate up to 12Mbps
Operating Temp: 4C to 40C
Made in North America (Canada)
USB RANGER 422(110V)
USB RANGER 422i (110-240V)
What does "LEX" and "REX" stand for? What do they do?
LEX stands for Local EXtender.
REX stands for Remote EXtender.
These two units comprise a standard Icron Extension solution. The LEX
unit interfaces to the host PC via a Type-B USB connector. The LEX
interfaces to the REX unit over the extension media (Cat-5 UTP, Fiber,
etc.) and the REX unit provides connectivity for one or more USB devices
at the remote location.
I daisy-chain ExtremeUSB systems together for longer reach?
No, it is not possible to daisy chain
multiple ExtremeUSB systems together. Only a single LEX and REX pair can
be connected to a host PC to ensure proper operation.
the Fiber based USB Extender operate through a standard Ethernet hub,
switch or router?
No. Icron's USB extenders are not compatible with
Ethernet hubs, switches or routers. The link protocol used is
proprietary and operates only as a dedicated point-to-point connection.
Which Fiber optic cable can be used with the
This item uses multimode duplex,
62.5/125, with MTRJ connectors on both sides for the stendard 1,000ft
distance. For a longer distance, you can change to 50/125, which
will allow you to run the distance up to 1,650ft.
