USB / USB 3 / Waterproof / Male Cables

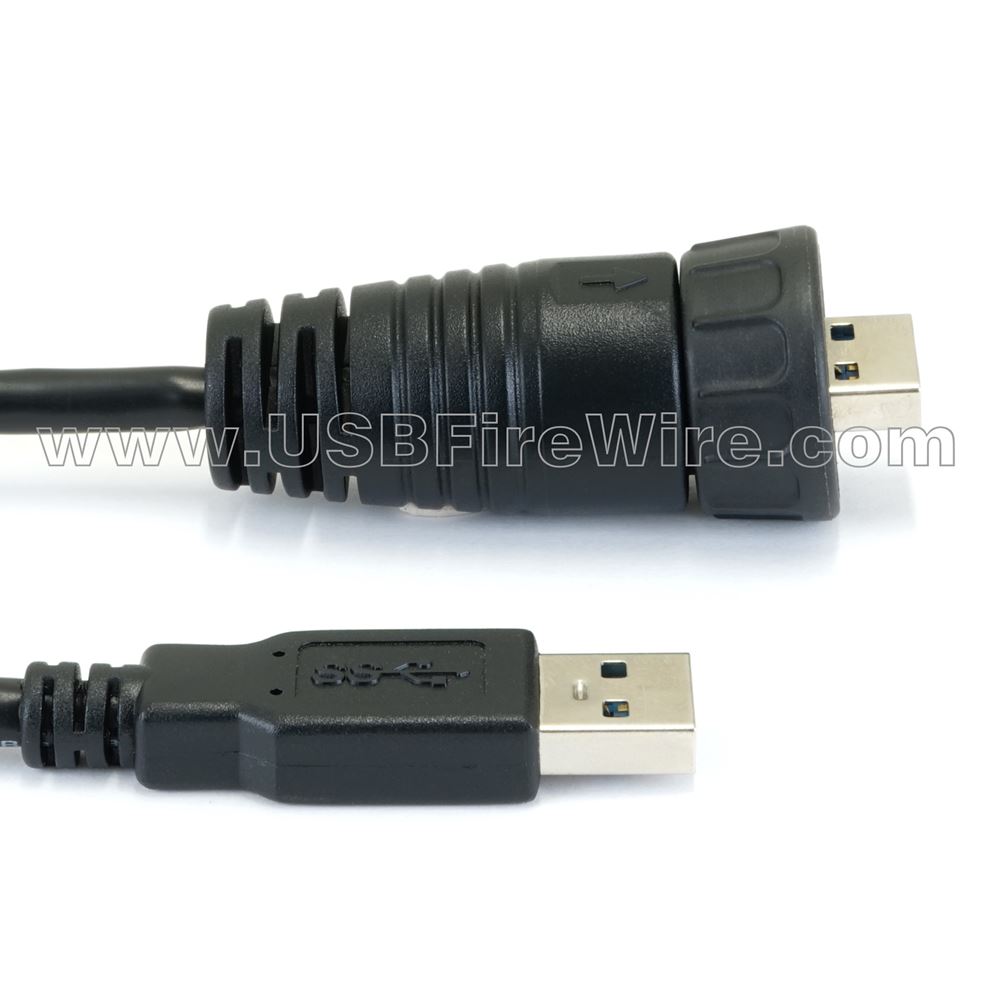

USB 3.0 Waterproof Cable with 22AWG Power

Plastic Waterproof Low Profile Straight A to Straight A male
Part Number:
RR-118320-02-XX
(xx = inches)
USB 3.0 Waterproof Cable with 22AWG Power
Click to view part page
Click to view large image

USB 3.0 Waterproof Cable with 22AWG PowerUSB 3.0 Waterproof Cable with 22AWG Power

Technical DrawingRequest a Quote


USB 3.0 Waterproof Cable with 22AWG Power

Superspeed USB 3.0
USB 3.0 A Male to connect your device to our USB 3.0 waterproof bulkhead connector. It boasts a non-rusting nylon shell which works well for wet environments that need to be power-washed, or salty maritime applications. Reliable USB 3.0 speed in a sealed environment.

Rugged USB Connector

From the picture, you can see that we use a thick plastic housing, which is nice, tough connector.  It's great for use in really rough environments, like farming , law enforcement field work, and in some factories that are just tough on hardware.  Don't risk a broken port, use this to ensure that your equipment isn't compromised by a flimsy USB port in a rugged environment

Plastic Waterproof Low Profile Straight A to Straight A male


Part Numbers

Available Part Numbers

  • PART# RR-118320-02-15
    SIZE: 15in (381mm)
  • PART# RR-118320-02-78
    SIZE: 6.5ft (1981mm)

Equivalent Part Numbers

  • GT118320-0V-02 (2 Meter)
  • (Previous PN) - RR-118320-0V-15
  • (Previous PN) - RR-118320-0V-XX

Additional information

What's included

  • Waterproof Low Profile Straight A Connector
  • Straight A Connector
  • Cross wiring (as standard for USB 3.0 A/A Cables)

Specifications

  • 22AWG Power/Ground
  • 28AWG Data pair
  • PVC Jacket
  • 5.5mm OD

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Price: $17.75

Price: $23.95
