USB / USB 3 / Rugged / Couplers

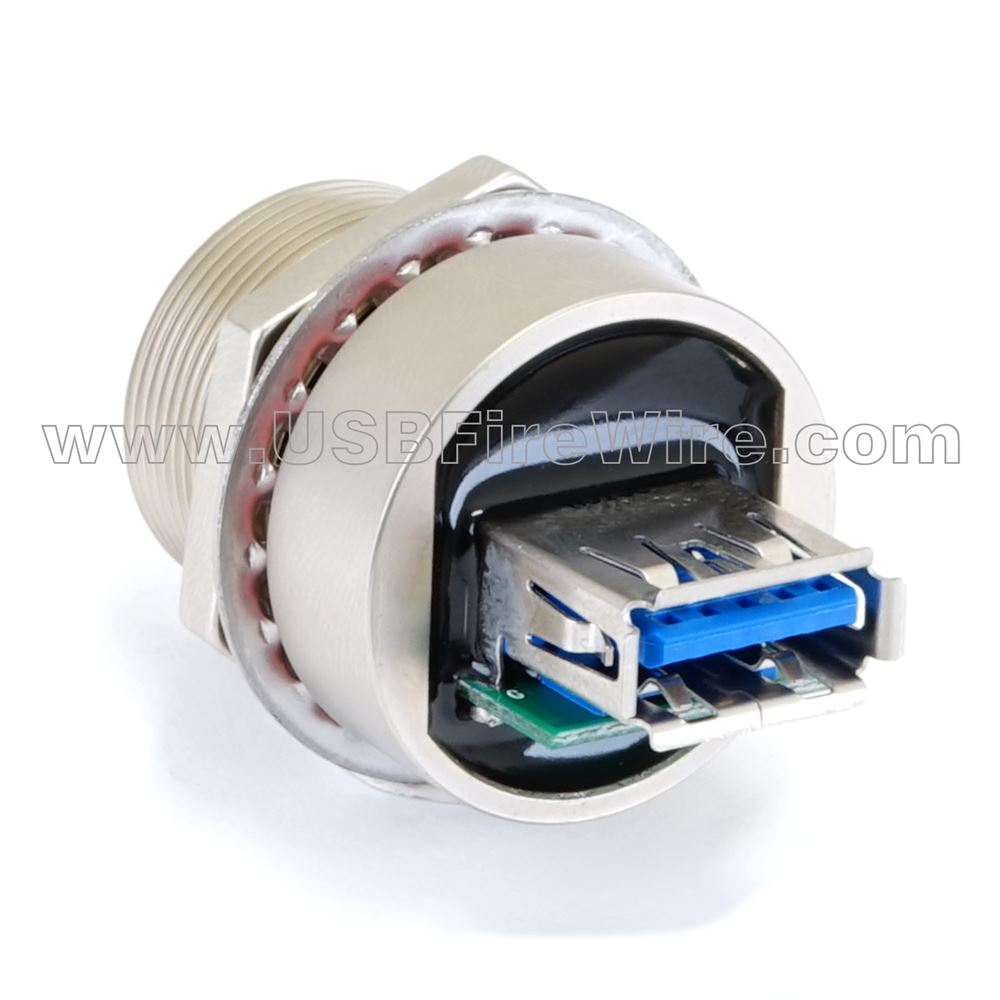

USB 3 Rugged A to A

Zinc Alloy Waterproof A Female to A Female
Part Number:
RR-218300-30
(xx = inches)
USB 3 Rugged A to A
Click to view part page
Click to view large image

USB 3 Rugged A to AUSB 3 Rugged A to A

Panel CutoutTechnical DrawingRequest a Quote


USB 3 Rugged A to A

USB Waterproof Coupler
Building a new product? Trying to find a solution that's waterproof? This USB 3.0 coupler could be right for you. It has a female mating connector on both sides, which makes it perfect for a solid production installation into your device. Our connectors are seal-able to an IP68 rating and ready to be installed into your case, controller, brief, tote, detonator, or anything else you might be installing it on.

Rugged USB Connector
From the picture, you can see that we use a metal housing.  It's a zinc alloy that's very tough, but also waterproof to IP68 standards. It's great for use in really tough environments, like farming , law enforcement field work, and in some factories that are just tough on hardware.  Don't risk a broken port, use this USB 3.0 waterproof coupler to ensure that your equipment isn't compromised by a flimsy USB port in a rugged environment.


Part Numbers

Available Part Numbers

  • PART# RR-218300-30, SIZE: Coupler

Additional information

What's included

  • Connector
  • Gasket
  • Hex Nut

Specifications

  • Thread: 13/16"-28 UN
  • Waterproof Rating: IP67
  • Max Panel Thickness: 6.0 mm
  • Torque: 19-20 Kgf-cm

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Recommended
  • Low Profile Waterproof Cap - Metal

    Seal Cap (Optional)

    Part #: RR-2C213012
    $7.95
Price: $25.00
