USB / USB 3 / Rugged / Female Cables

USB 3.1 C to C Female

Straight C Male to Rugged C Female
Part Number:
RR-21C300-CS-XX
(xx = inches)
USB 3.1 C to C Female
Click to view part page
Click to view large image

USB 3.1 C to C FemaleUSB 3.1 C to C Female

3D Model - Conn. 1Panel CutoutTechnical DrawingRequest a Quote


USB 3.1 C to C Female

Waterproof USB Extension Cable
Building a new product?  Trying to find a solution that's waterproof?  This USB 3.1 Ruggedized cable is right for you.  It has a female mating connector that's perfect for easy installation into your device.  Our waterproof 3.1 connectors are sealed and ready to be installed into your case, controller, brief, tote, detonator, or anything else you might be installing it on.

Rugged Connector

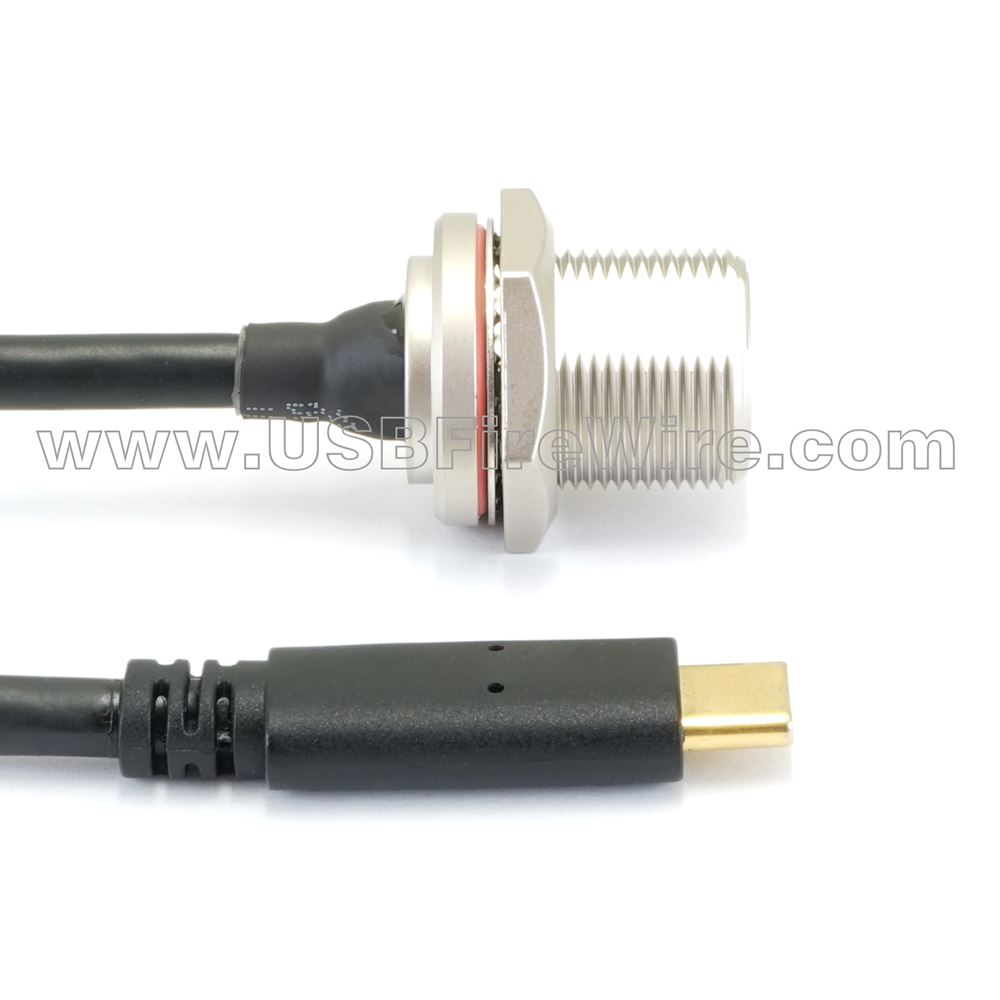

From the picture, you can see that we use a metal housing.  It's a zinc alloy that's very tough, but also waterproof to IP68 standards. It's great for use in really tough environments, like farming , law enforcement field work, and in some factories that are just tough on hardware. Don't risk a broken port, use this to ensure that your equipment isn't compromised by a flimsy port in a rugged environment.


Part Numbers

Available Part Numbers

  • PART# RR-21C300-CS-06, SIZE: 6in (152mm)
  • PART# RR-21C300-CS-10, SIZE: 10in (254mm)
  • PART# RR-21C300-CS-15, SIZE: 15in (381mm)
  • PART# RR-21C300-CS-20, SIZE: 20in (508mm)

Additional information

What's included

  • Straight C Male Connector
  • Rugged C Female Connector
  • Gasket
  • Hex nut

Specifications

  • Operating Temp: -30°C to +80°C
  • Thread: 5/8”-27 UNS
  • Waterproof Rating: IP68
  • Max Panel Thickness: 6.0 mm
  • Torque: 19-20 Kgf-cm
  • Bend Radius: 20mm
  • Double Shielded
  • 24AWG Power/Ground
  • 32AWG Data pair
  • TPE Jacket
  • 4.8mm OD
  • Size: C2
  • Power Delivery – 20V/5A

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Recommended
  • Seal Cap (Optional)

    Seal Cap (Optional)

    Part #: RR-1C523122
    $2.50
  • Mini-B Seal Cap for zinc alloy connectors

    Seal Cap (Optional)

    Part #: RR-1C523122M
    $7.50
Price: $25.50

Price: $25.50

Price: $25.75

Price: $26.00


Custom made cables

Use our industry-leading custom cable design tool to specify exactly how you want your cable done.

Design your own cable!
