Ethernet / Rugged / Male Connectors

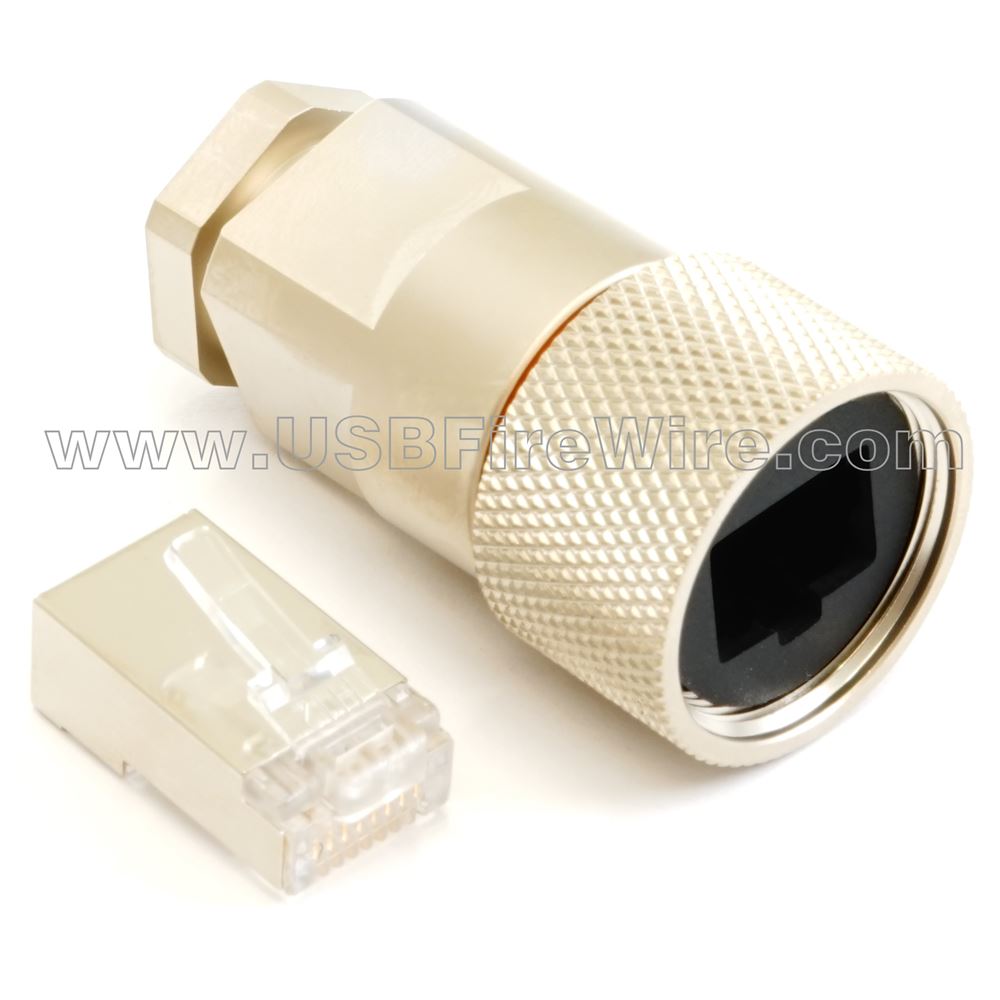

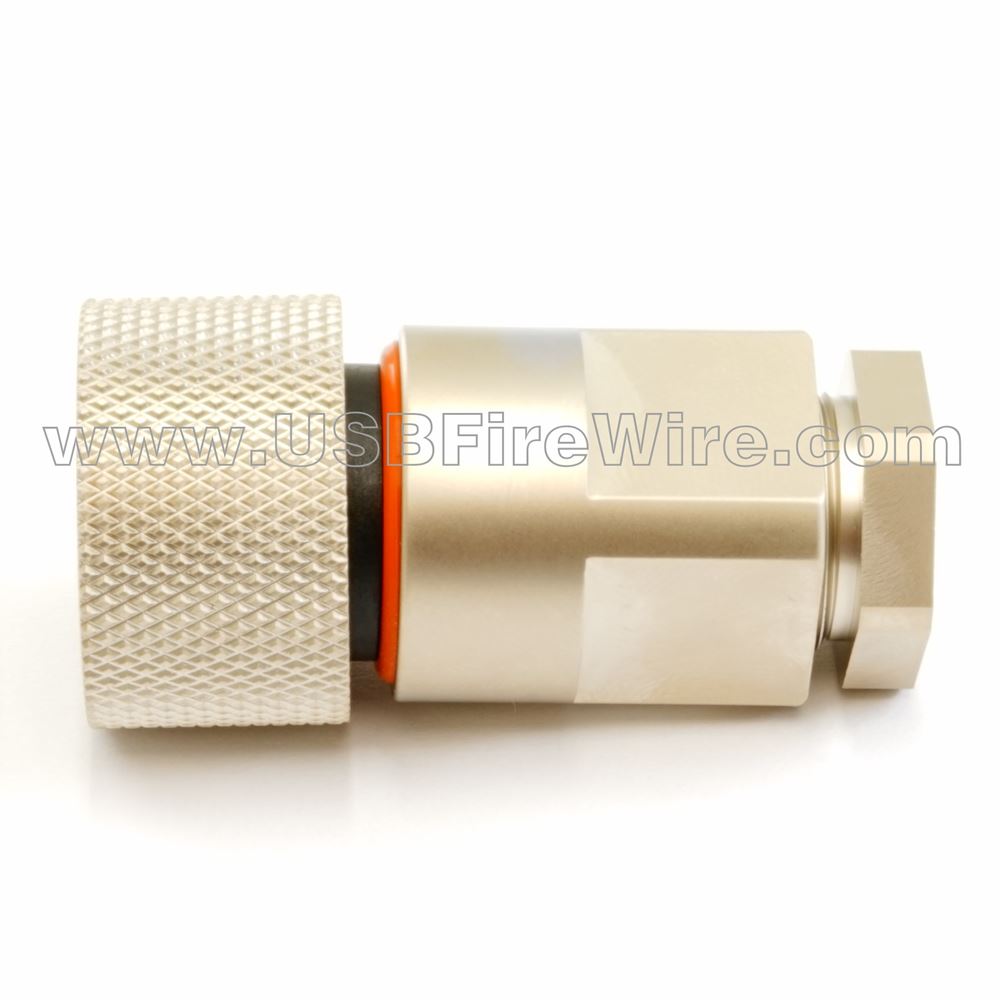

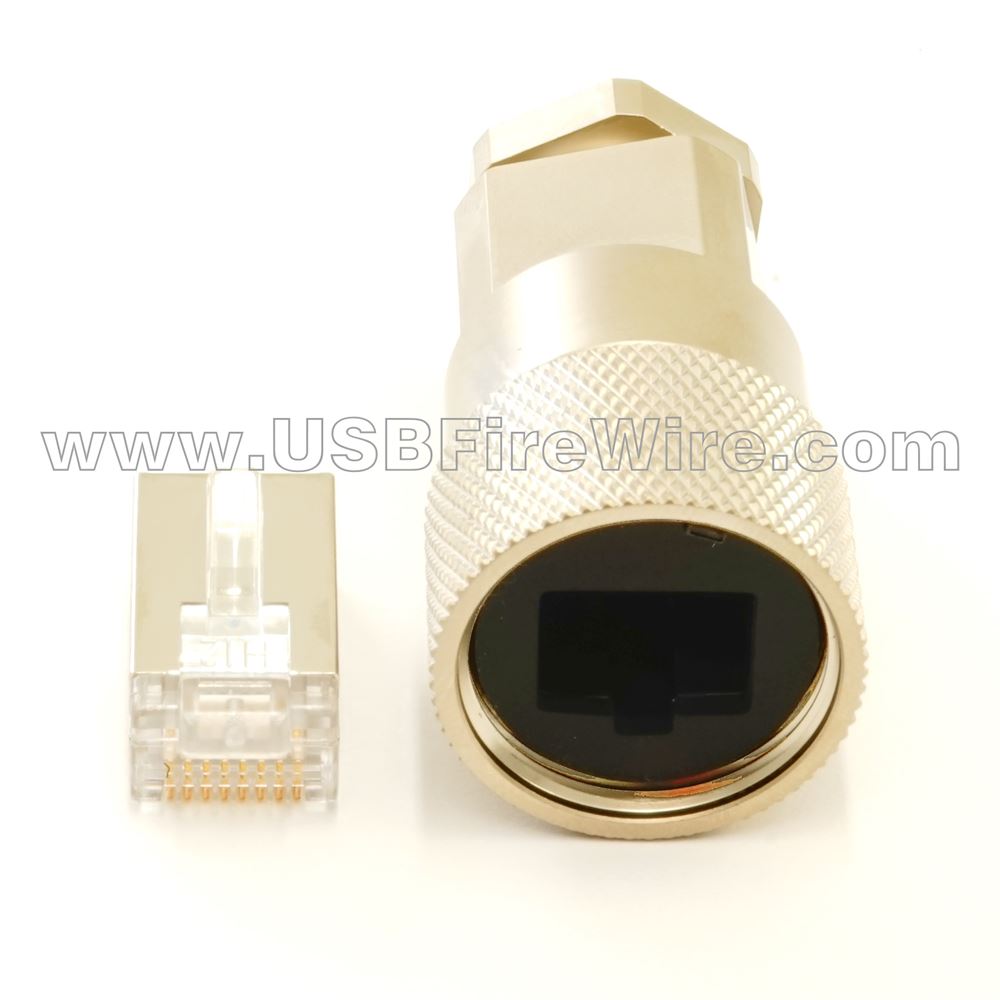

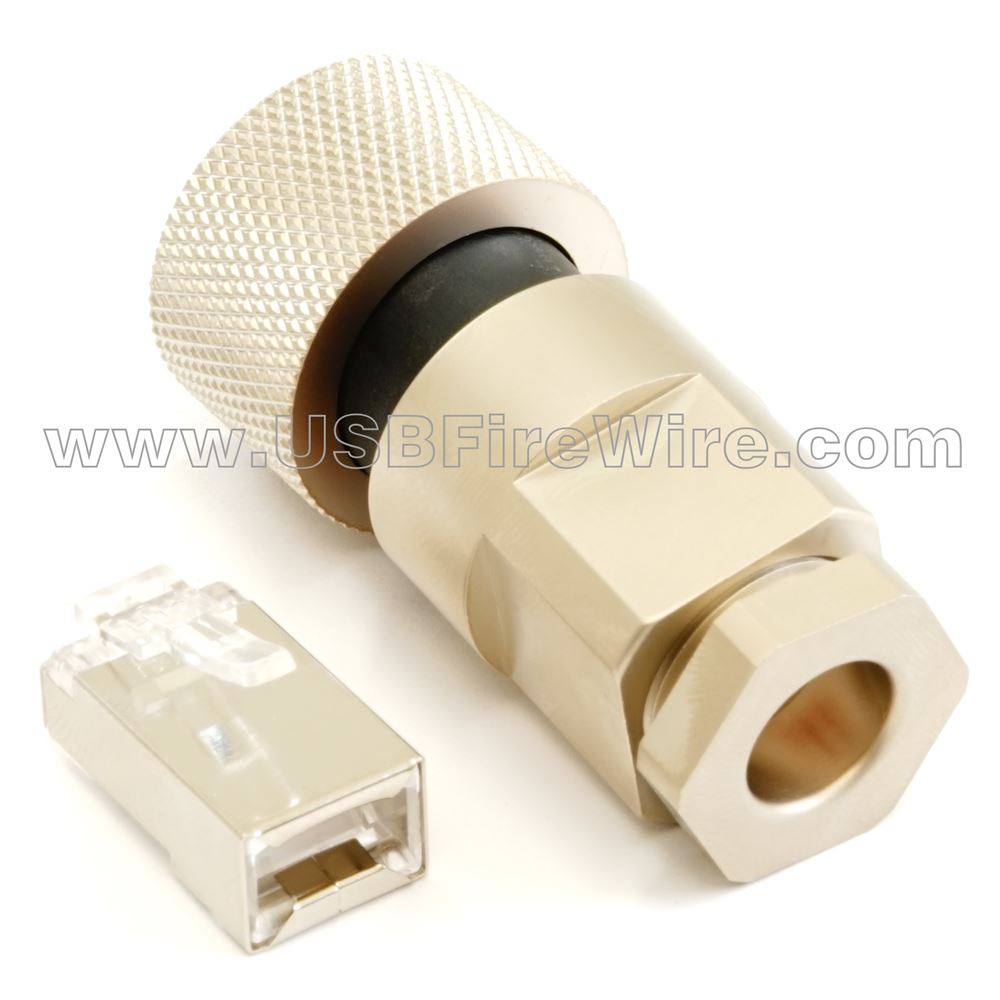

Full Metal Screw Field-installable Male Connector

Waterproof Zinc Connector - Fits 6.0-8.5 mm Wire
Part Number:
RR-225370-A0
(xx = inches)
Full Metal Screw Field-installable Male Connector
Click to view part page
Click to view large image

Full Metal Screw Field-installable Male ConnectorFull Metal Screw Field-installable Male Connector

Technical DrawingRequest a Quote


Full Metal Screw Field-installable Male Connector

Our industrial-grade waterproof RJ45 connector is built for reliability in demanding environments where durability, weather resistance, and data integrity are non-negotiable. This connector installs easily and securely inside enclosures, control boxes, tactical kits, or ruggedized devices. The keyed design ensures consistent orientation during assembly, making it ideal for high-efficiency production. Fully sealed against moisture and dust, it's perfect for outdoor networking, smart farming equipment, law enforcement field gear, and factory automation systems where exposure to the elements or physical stress is expected.

Engineered for performance, this rugged RJ45 connector features a tough zinc alloy metal housing that resists corrosion, impact, and vibration. Its fully shielded internal wiring protects against electromagnetic interference, ensuring stable, high-speed Ethernet connectivity even in electrically noisy environments. Whether you're building mobile systems, upgrading industrial controllers, or deploying data links in harsh conditions, this sealed, shielded Ethernet connector delivers dependable performance with professional-grade resilience. If you need a field-ready, outdoor RJ45 solution, this connector is designed to outlast and outperform.


Part Numbers

Available Part Numbers

  • PART# RR-225370-A0, SIZE: RJ45 Kit

Additional information

What's included

  • Waterproof Zinc Connector - Fits 6.0-8.5 mm Wire

Specifications

  • Operating Temp: -30°C to +80°C
  • Thread: 13/16”-28 UN
  • Waterproof Rating: IP68
  • Max Panel Thickness: 6.0 mm
  • Cover Torque: 7 kg/cm (6 in/lb)
  • Gland Nut Torque: 10 kg/cm (8 in/lb)
  • Size: C3

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Price: $14.00
