USB / USB 2 / Cables / A to A / Up Angle

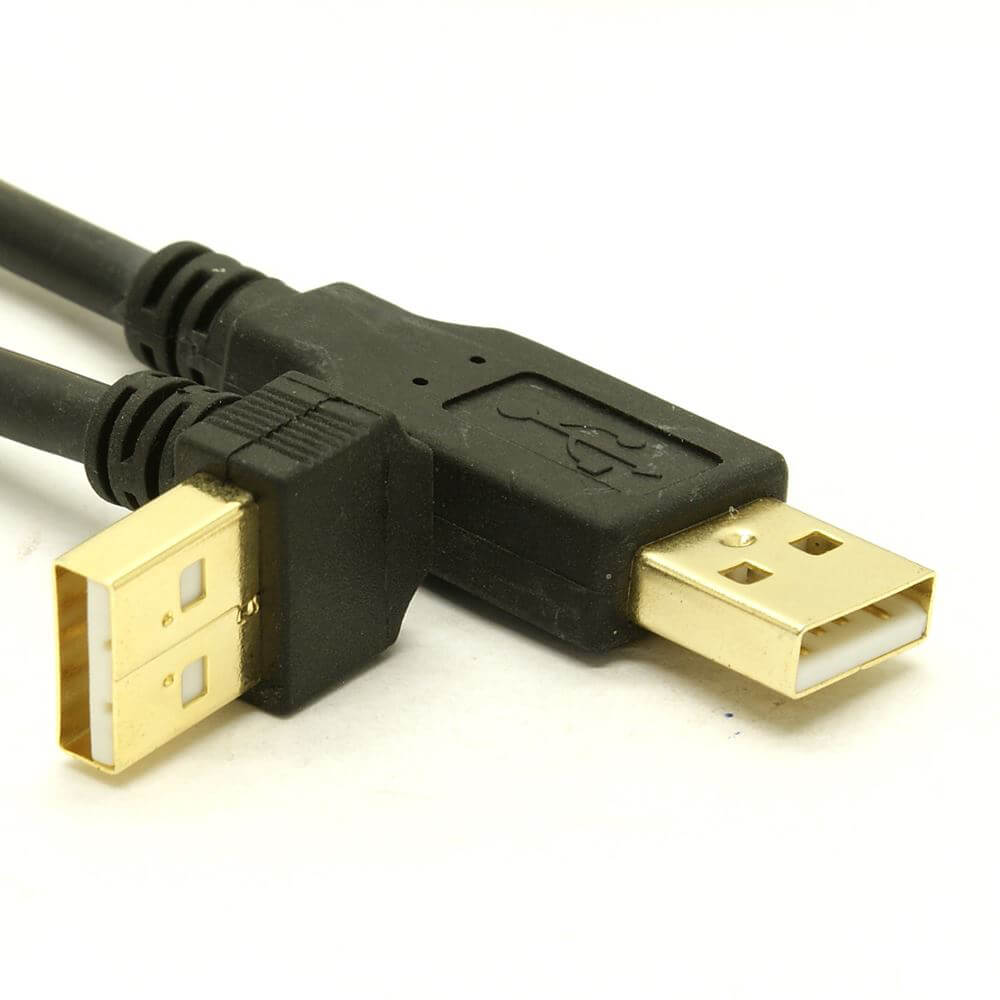

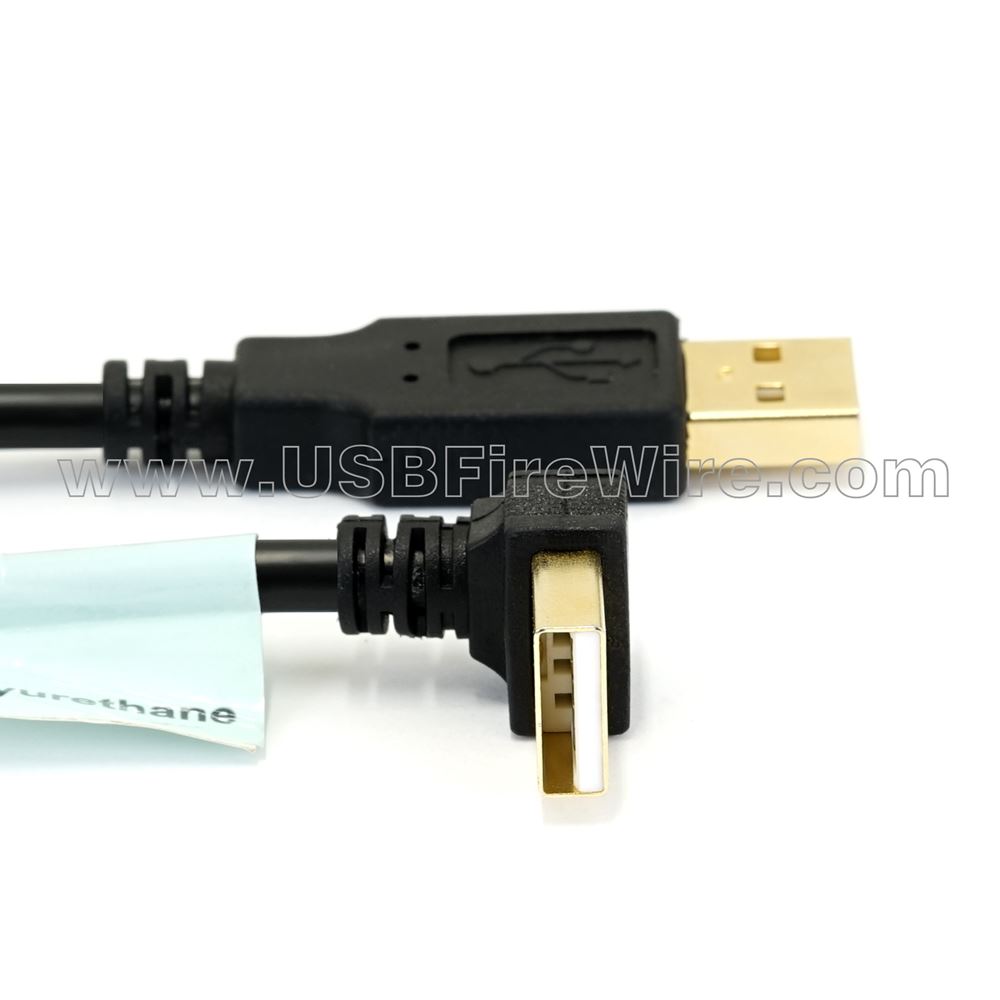

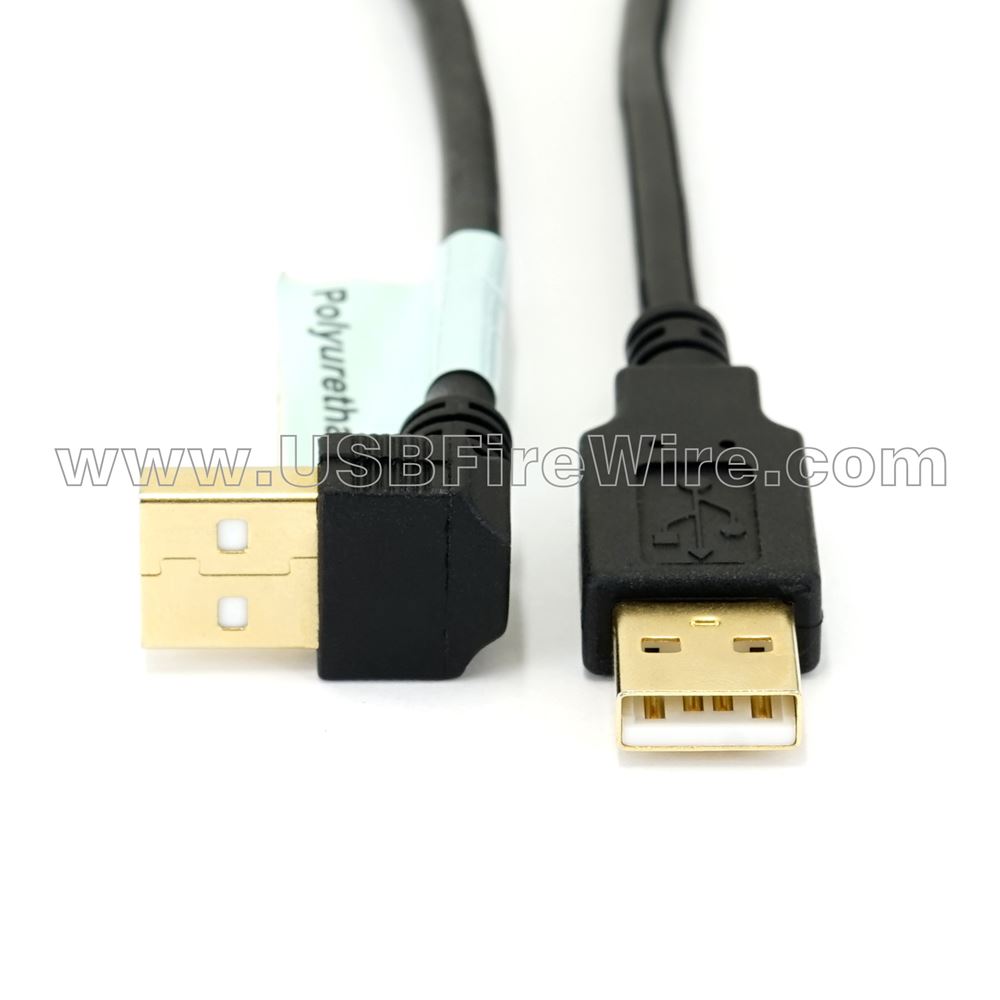

USB 2 Up A to A

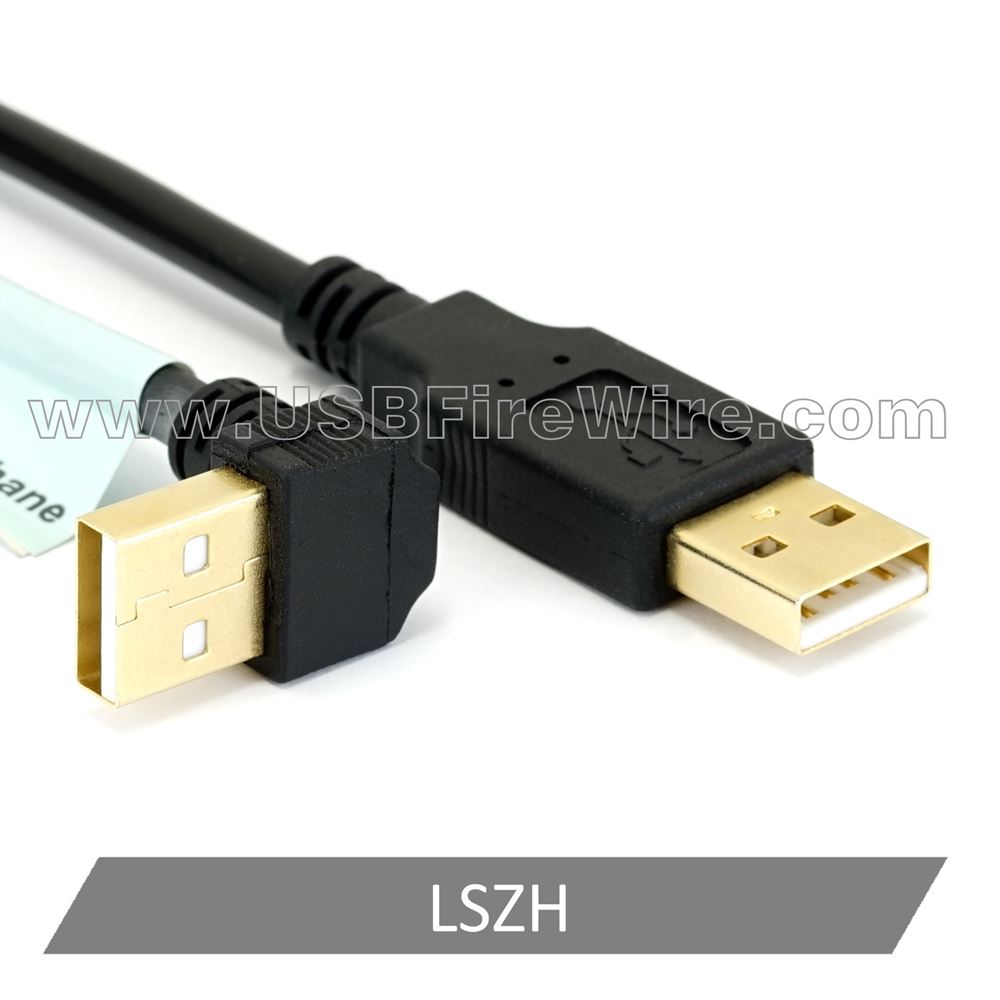

(LSZH Cable)

Up A Male to Straight A Male
Part Number:
RR-AR2TA-XXGP
(xx = inches)
USB 2 Up A to A<br> (LSZH Cable)
Click to view part page
Click to view large image

USB 2 Up A to A<br> (LSZH Cable)USB 2 Up A to A<br> (LSZH Cable)

3D Model - Conn. 13D Model - Conn. 2Technical DrawingRequest a Quote


USB 2 Up A to A
(LSZH Cable)


USB 2.0 Cable (Up Angle)
This is a unique A to A USB 2.0 Device cable with a low smoke/zero halogen jacket.  The beauty of this cable is that it has a convenient Right Angle Side Exit on it that gives you maximum flexibility when you're in a tight spot.

Great for industrial use
This USB 2.0 Right Angle Side Exit device cable has been used for both industrial applications, such as inside a confined airspace or plenum where there is no other choice than an LSZH cable.  This is just one of many variations that we have in stock.  Or, we can custom build to your spec with a low minimum order quantity.

Up A Male to Straight A Male


Part Numbers

Available Part Numbers

  • PART# RR-AR2TA-40GP, SIZE: 40in (1016mm)

Additional information

What's included

  • Up A Connector
  • Straight A Connector

Specifications

  • Operating Temp: -30°C to +80°C
  • Bend Radius: 20mm
  • Double Shielded
  • 24AWG Power/Ground
  • 28AWG Data pair
  • LSZH Jacket (Low Smoke / Zero Halogen)
  • 5.0mm OD

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Price: $14.25


Custom made cables

Use our industry-leading custom cable design tool to specify exactly how you want your cable done.

Design your own cable!
