USB / USB 3 / Panel Mount / C Panel Mount

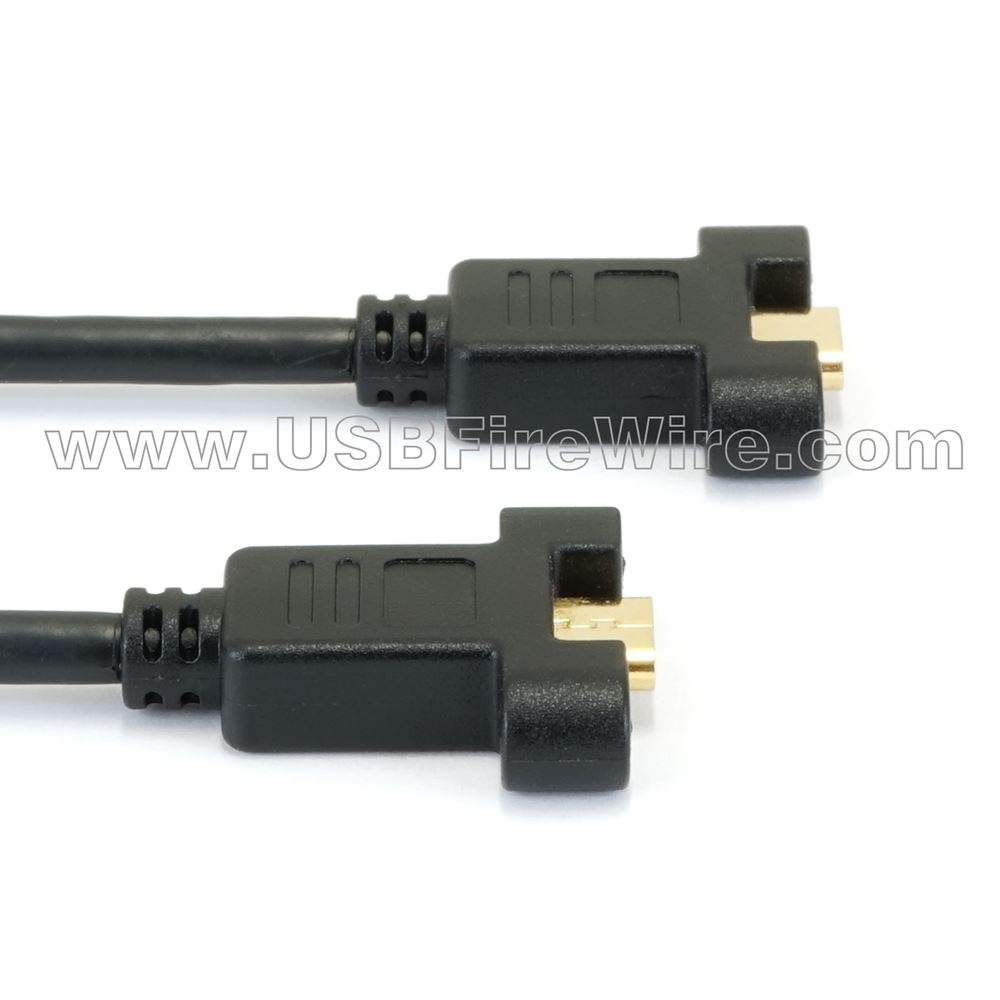

USB 3.1 C Female Panel Mount Extension

C Female Panel Mount Extension, both sides
Part Number:
RR-CFPMX2-XXGRNTP
(xx = inches)
USB 3.1 C Female Panel Mount Extension
Click to view part page
Click to view large image

USB 3.1 C Female Panel Mount ExtensionUSB 3.1 C Female Panel Mount Extension

Technical DrawingRequest a Quote


USB 3.1 C Female Panel Mount Extension

Commercial Design
This cable features a C Female Panel Mount Extension on each end, gold plated contacts, TPE jacket, and thoughtfulness into every detail, including shielding and long-term reliability.  Our products are designed for long-term use with the intent of an excellent commercial or industrial application.

USB 3.1 C Extension Cable, Panel Mount
This is a panel mount USB 3.1 extension cable, which gives you an easy way to add an external USB port to your device. High quality materials, sturdy connectors and flexible cable material, as well as thorough double shielding are our cable trademarks.

Short  Length
With short cables in stock, this cable can fit nicely on your desk without making it cluttered. Sometimes a simple, short cable, or perfect length cable will do the trick. See our list of sizes for current availability.

Custom Lengths / Designs
We now have the capability to build custom angles, such as right/left or up/down angle, as well as unique custom lengths to fit your design.  Contact us today for specific information.


Part Numbers

Available Part Numbers

  • PART# RR-CFPMX2-05GRNTP
    SIZE: 5in (127mm)
  • PART# RR-CFPMX2-10GRNTP
    SIZE: 10in (254mm)
  • PART# RR-CFPMX2-15GRNTP
    SIZE: 15in (381mm)
  • PART# RR-CFPMX2-25GRNTP
    SIZE: 25in (635mm)
  • PART# RR-CFPMX2-40GRNTP
    SIZE: 40in (1016mm)

Equivalent Part Numbers

  • RR-CFPMX2-05G
  • RR-CFPMX2-10G
  • RR-CFPMX2-15G
  • RR-CFPMX2-25G
  • RR-CFPMX2-40G

Additional information

Specifications

  • Connector 30u gold plated contacts
  • Fast charge compatible - up to 3 amps

Compliance

  • RoHS Compliant
  • REACH Compliant
  • Certificate of Conformity

Buy this item

Price: $22.75

Price: $25.50

Price: $28.25

Price: $29.75

Price: $34.00


Custom made cables

Use our industry-leading custom cable design tool to specify exactly how you want your cable done.
